Achieve Professional Audio Accuracy with the Shizza Home Audio Alignment Tool
The difference between a “good” turntable and a “great” one often comes down to the precision of the cartridge alignment. If your cartridge is even slightly misaligned, you face increased distortion, “sibilance” (harsh ‘s’ sounds), and permanent damage to your vinyl grooves.
Why Use a 2-Point Protractor? Because a tonearm travels in an arc, there are only two specific points where the stylus is perfectly tangent to the record groove. Our calibration gauge allows you to align your cartridge at both the inner and outer null points, ensuring the most accurate tracking possible from the first track to the last.
Designed for Clarity and Durability Crafted with high-contrast markings, this protractor eliminates the guesswork. The Stevenson alignment method used here is particularly effective at reducing distortion on the inner tracks of a record, where the grooves are most compressed.
Quick Setup Guide:
-
Place the protractor over your turntable spindle.
-
Move the cartridge/tonearm so the stylus rests on the center point of the outer grid.
-
Adjust the cartridge so that it is parallel with the grid lines.
-
Repeat the process on the inner grid.
-
Tighten your mounting screws and enjoy crystal-clear analog audio.
Specifications:
-
Type: 2-Point Alignment Protractor
-
Geometry: Stevenson
-
Inner Null Point: 60.325mm
-
Outer Null Point: 117.421mm
-
Material: High-grade composite with anti-glare finish

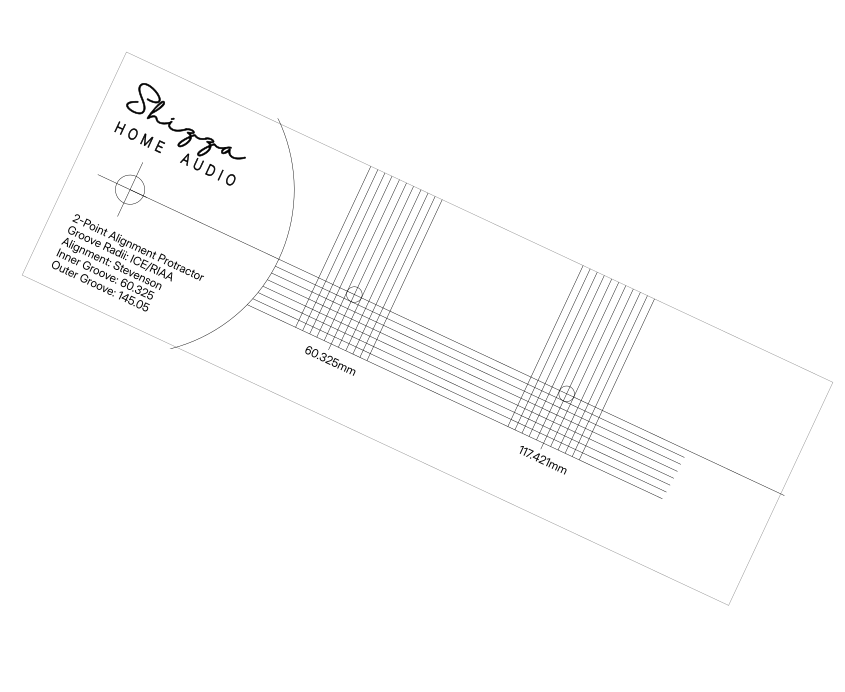

Package Includes: 1 x Shizza Home Audio Stylus Alignment Protractor (White)
